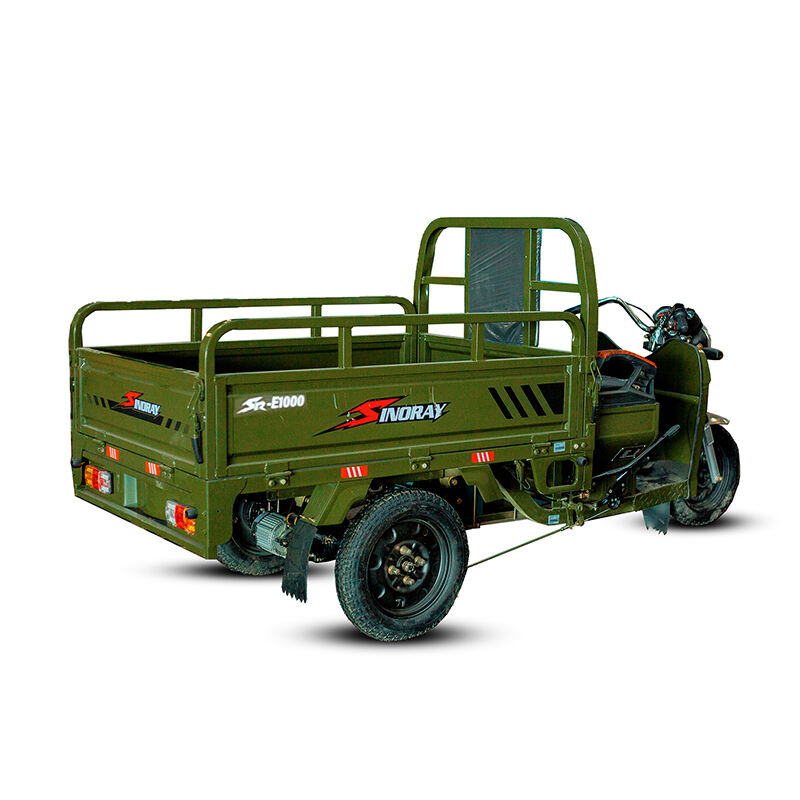

SINORAY Electric Tricycle WEZ5B05
54AH lithium battery, front and rear linkage brakes, reinforced frame and compartment
- Overview
- Recommended Products
Product Description
● Extra-large cargo compartment, strong load-bearing capacity: The body size is 3015×1120×1270 mm, which is compact and flexible and can meet various transportation needs; the cargo compartment size is 1500×1050×280 mm, which can carry 500kg, meeting the transportation of various bulk goods, easily transporting large quantities of goods, and improving transportation efficiency.
● Strong power, efficient endurance: The motor system is equipped with a 60V 1200W high-performance motor, which is powerful and starts quickly; the 54AH large battery provides stable endurance power; a single charge can travel 100km (empty) / 60km (full load), meeting long-distance transportation needs; the charging time is only 8-10 hours, charging at night, and traveling with full power during the day.
● Stable and safe, easy to drive: The front 37 shock absorber + rear leaf spring suspension effectively buffers bumps and improves driving comfort; drum brakes are equipped at the front and rear, with stable braking performance to ensure driving safety.
Product Specification
|
electric tricycle WEZ5B05 | |
| ITEM | SPECIFICATION |
| OVERALL DIMENSIONS (LXWXH) MM | 3015×1120×1270 MM |
| DIMENSIONS OF THE CARGO BODY (LXWXH)MM | 1500×1050×280 MM |
| WHEEL BASE (MM) | 2100 |
| WHEEL TRACK (FRONT/REAR)(MM) | 905 |
| MIN. GROUND CLEARANCE(MM) | ≥160 |
| CURB WEIGHT (KG) | 360 |
| RATED PAYLOAD (KG) | 500 |
| MAX.SPEED (KM/H) | 35 |
| MAX. SLOPE OF CLIMB (%) | ≥25 |
| MIN. TURNING RADIUS (M) | 2.4 |
| FRONT/REAR SHOCK ABSORBER | FRONT 37 SHOCK ABSORBER, /REAR LEAF SPRING |
| FRONT WHEEL | 3.50-12 |
| REAR WHEEL | 3.75-12 |
| MOTOR CONTROLLER(W) | 60V 1200W |
| BATTERY | 54AH |
| RANGE PER CHARGING(KM) | 100KM EMPTY, 60KM FULL |
| CHARGING TIME(H) | 8H-10H |
