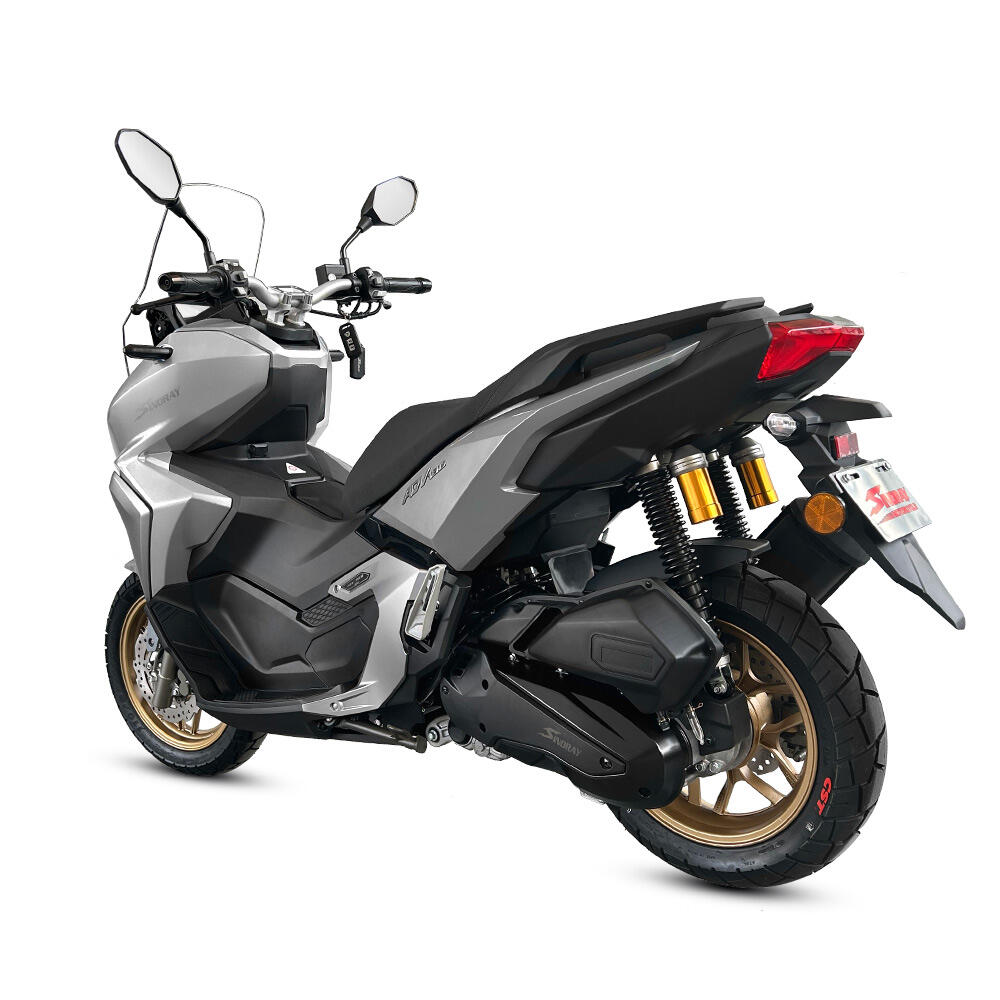

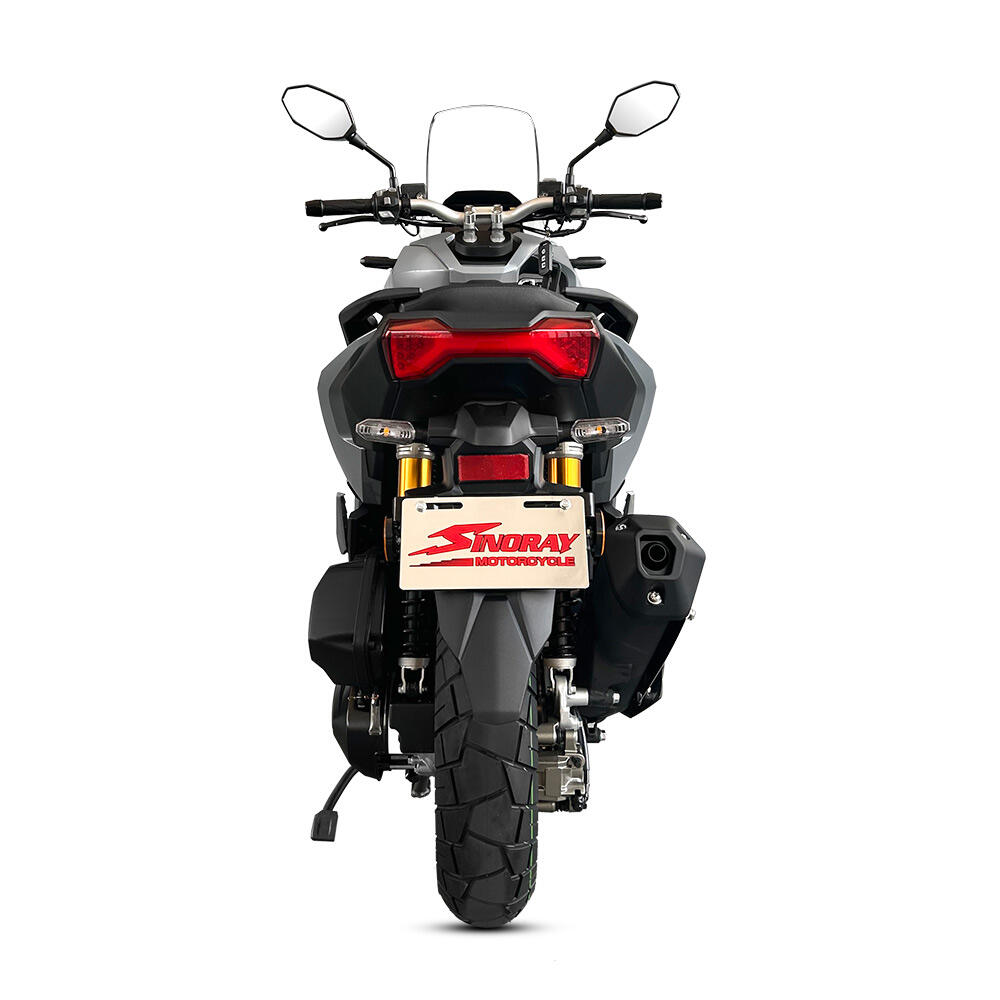

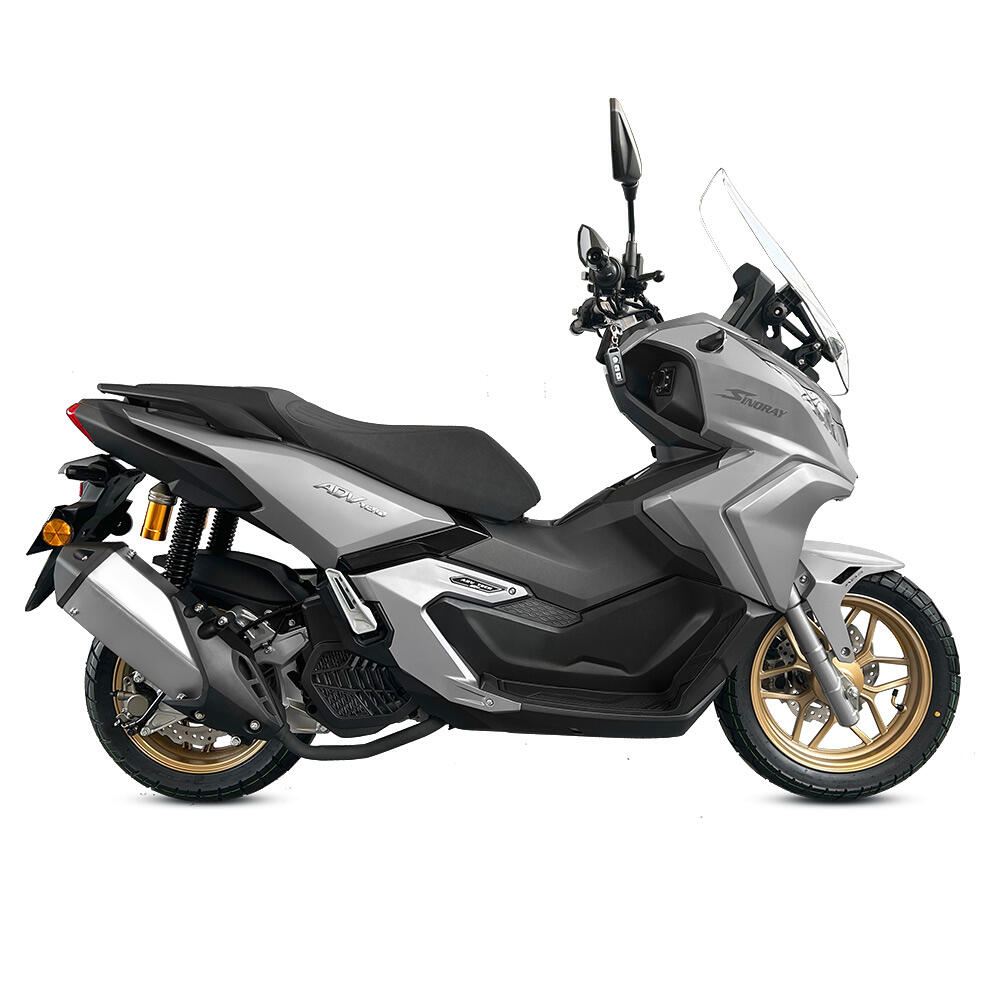

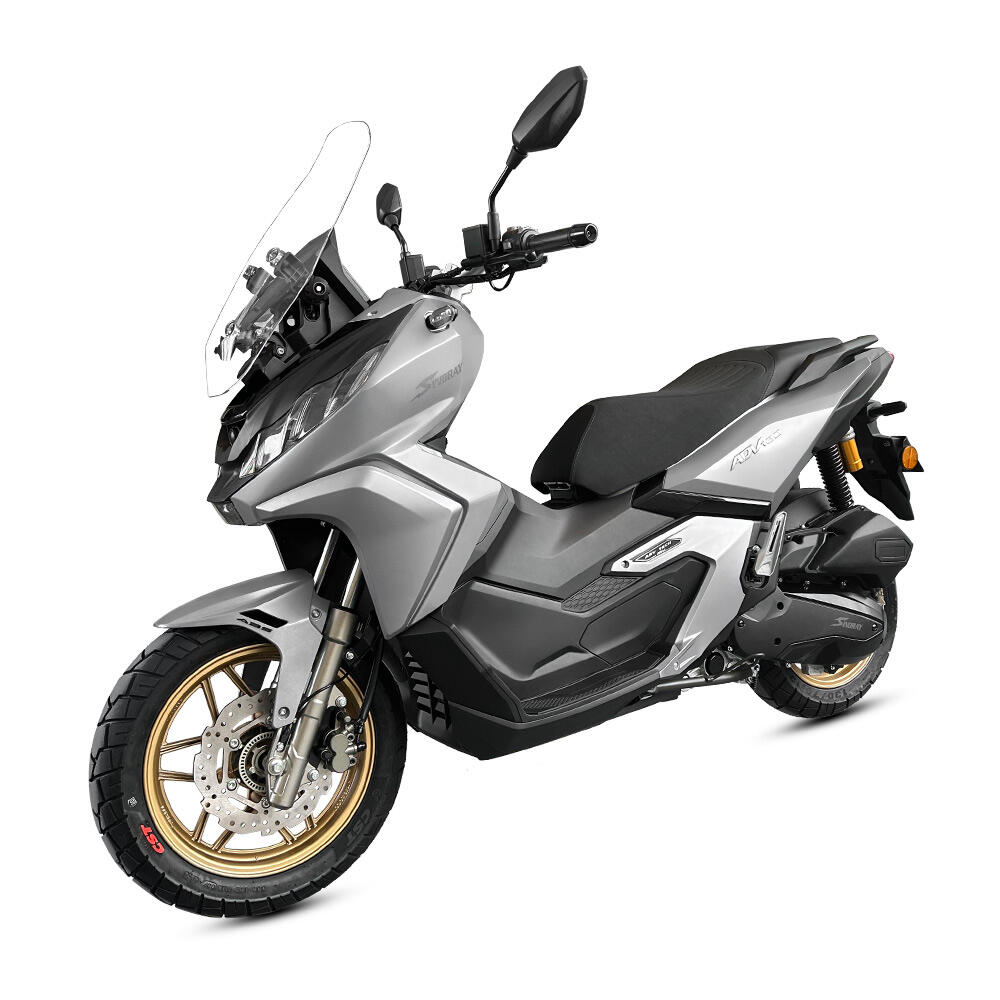

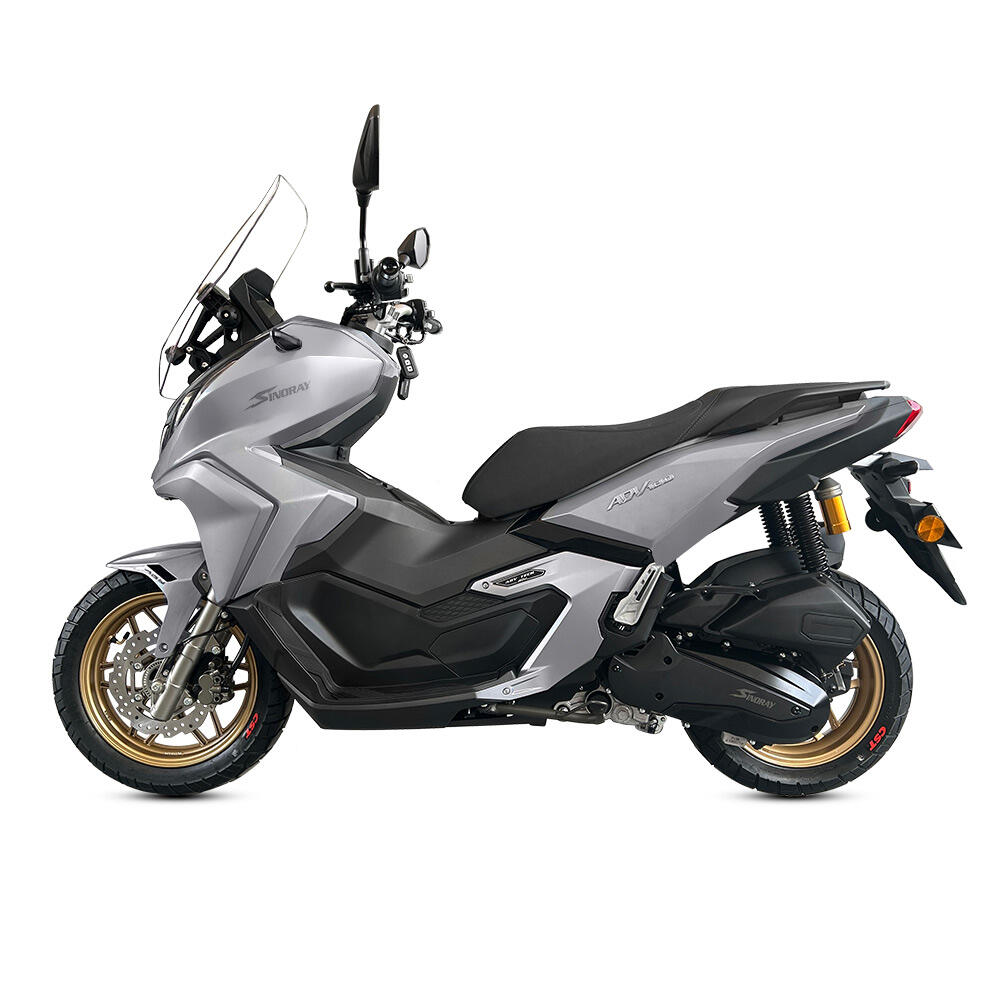

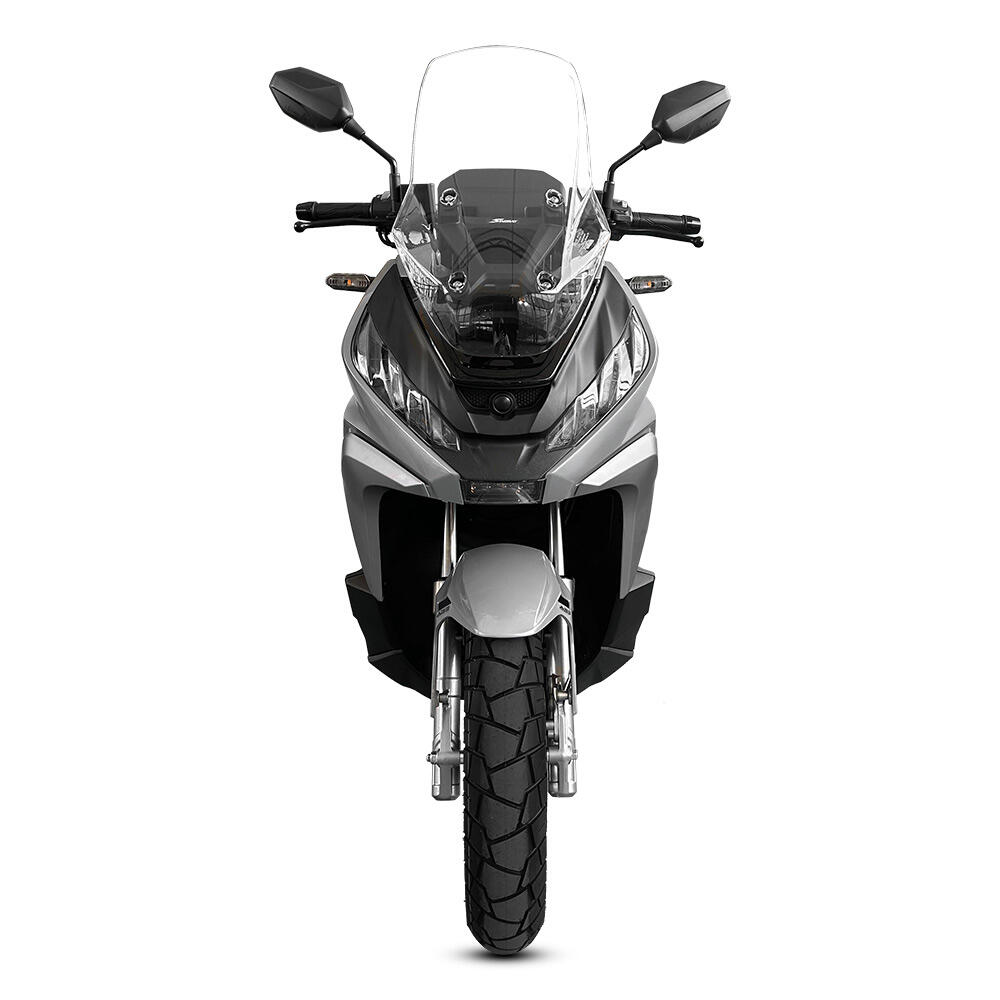

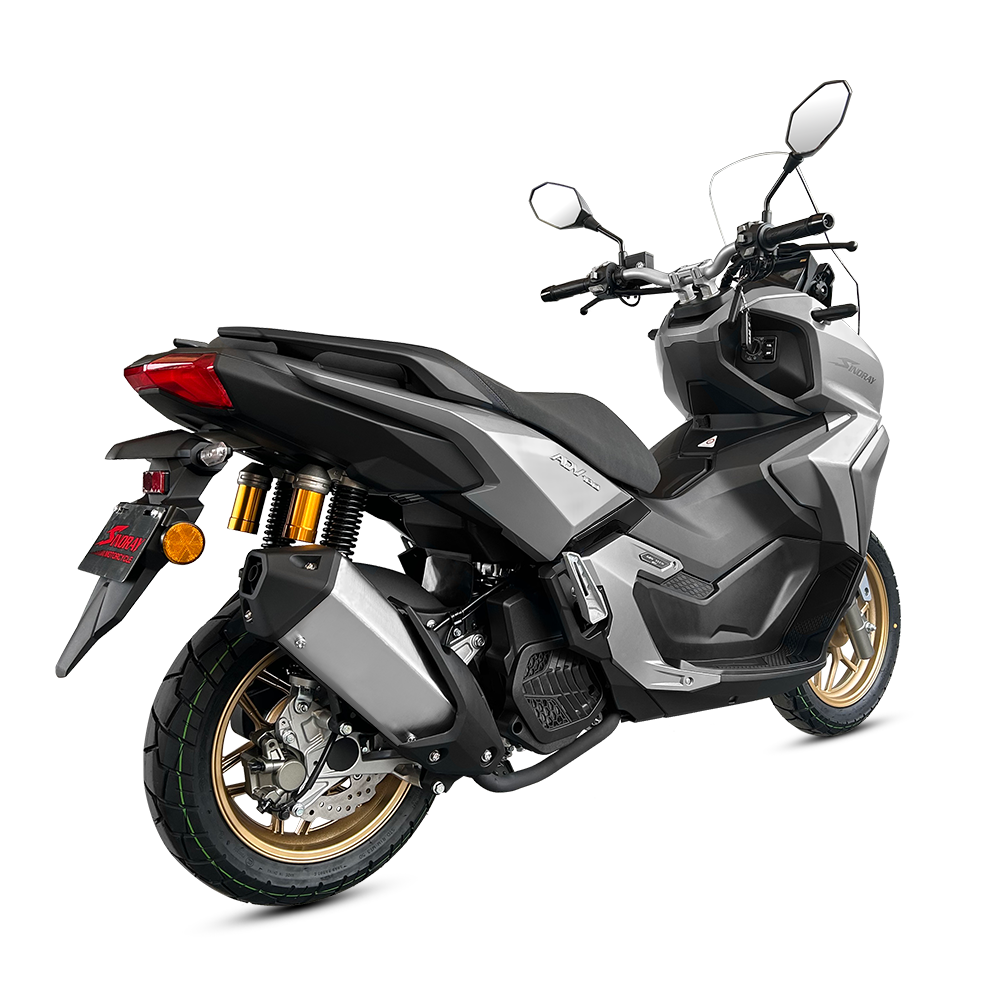

SINORAY Scooter SR180-ADV

Novel exterior design, equipped with a high-end 180cc four-valve EFI engine. It features lower fuel consumption and flexible control, highlighting riders’ unique charm and adding more fun to your tasteful life.

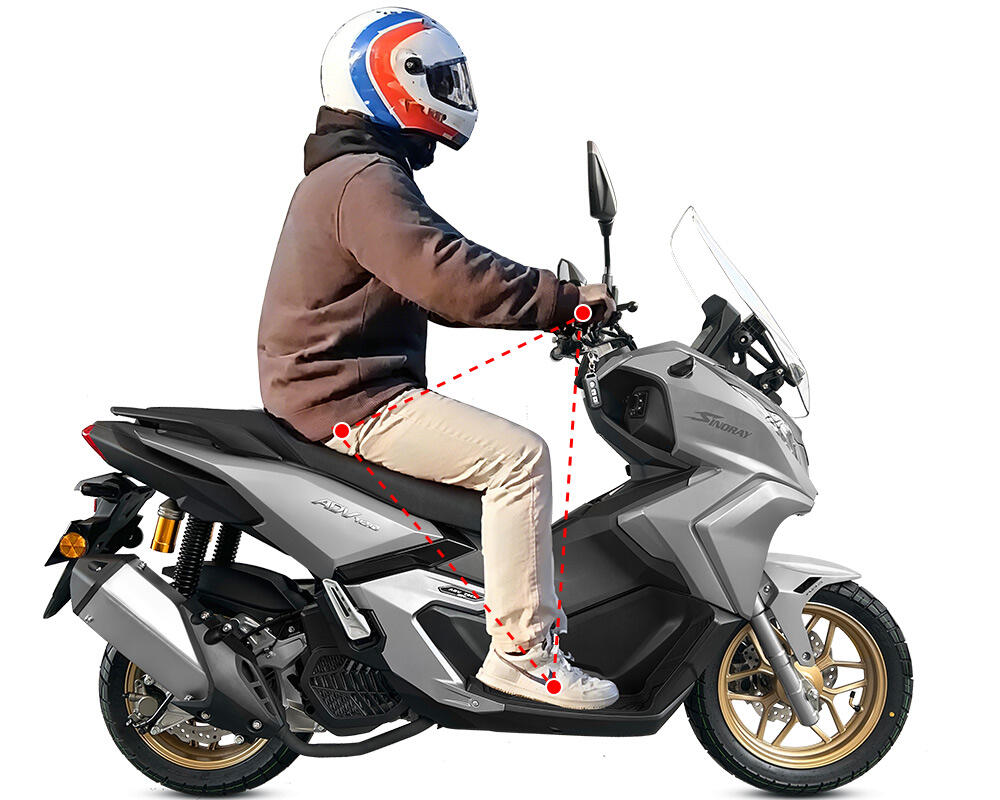

	Ergonomic design: Ergonomic design delivers lightweight control and a comfortable riding experience!

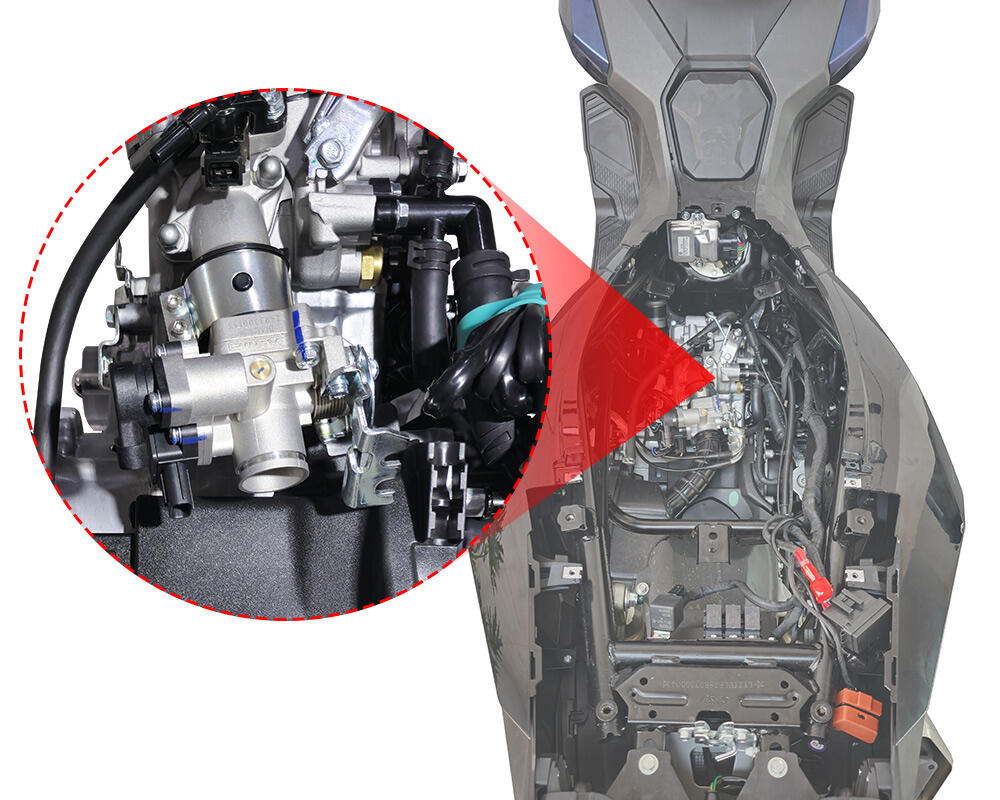

	Bosch EFI system : Bosch EFI system, high-end brand configuration, ride with greater peace of mind!

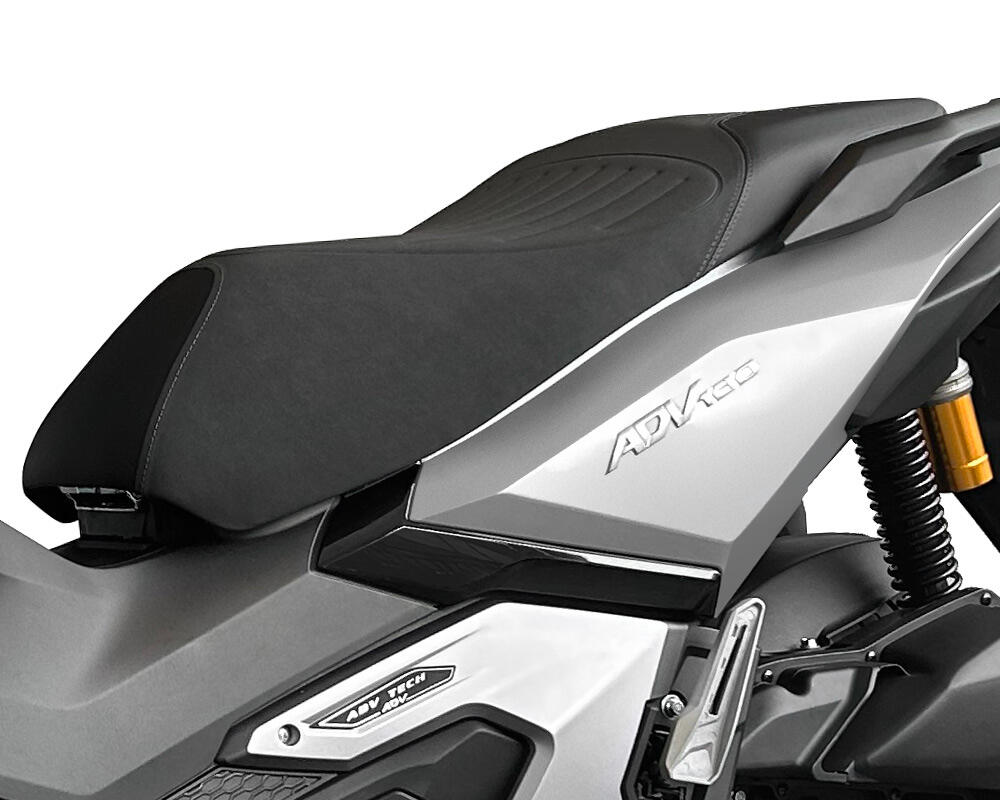

	High-density cushions: Premium materials and high-density cushions with exquisite craftsmanship deliver a comfortable and cozy riding experience for you!

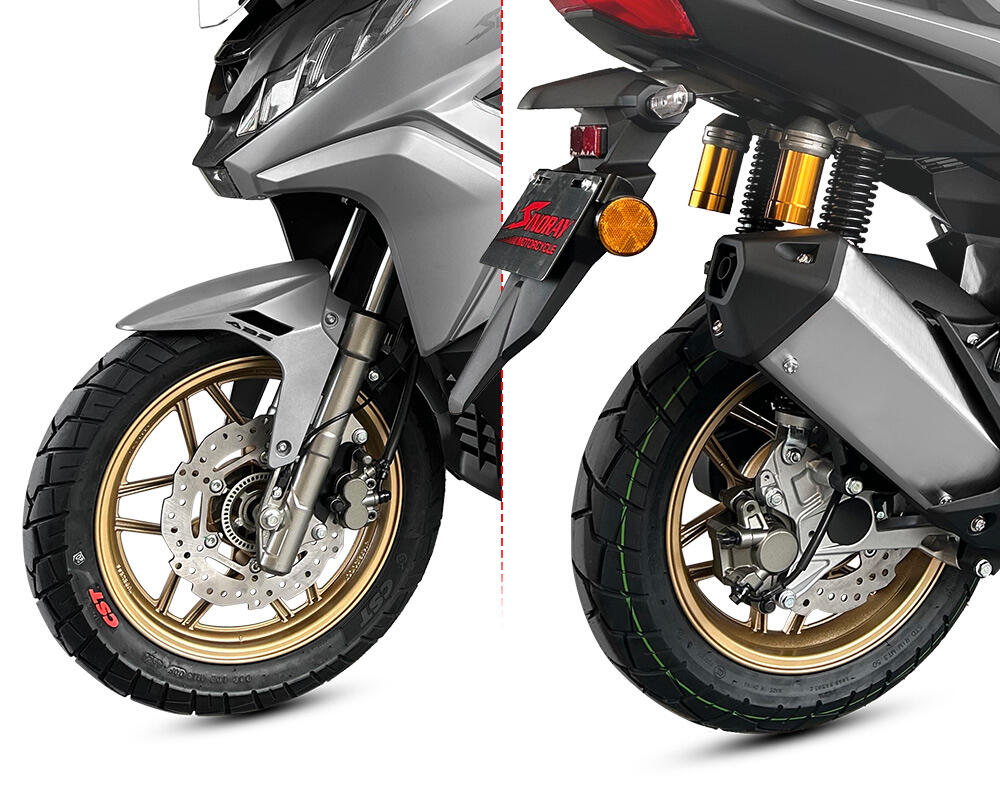

	Front & rear suspension: Equipped with well-matched, durable and comfortable front and rear shock absorbers, it delivers excellent shock absorption on all kinds of road surfaces. ABS front and rear disc brakes : Front and rear ABS disc brakes with anti-lock function ensure safe riding.

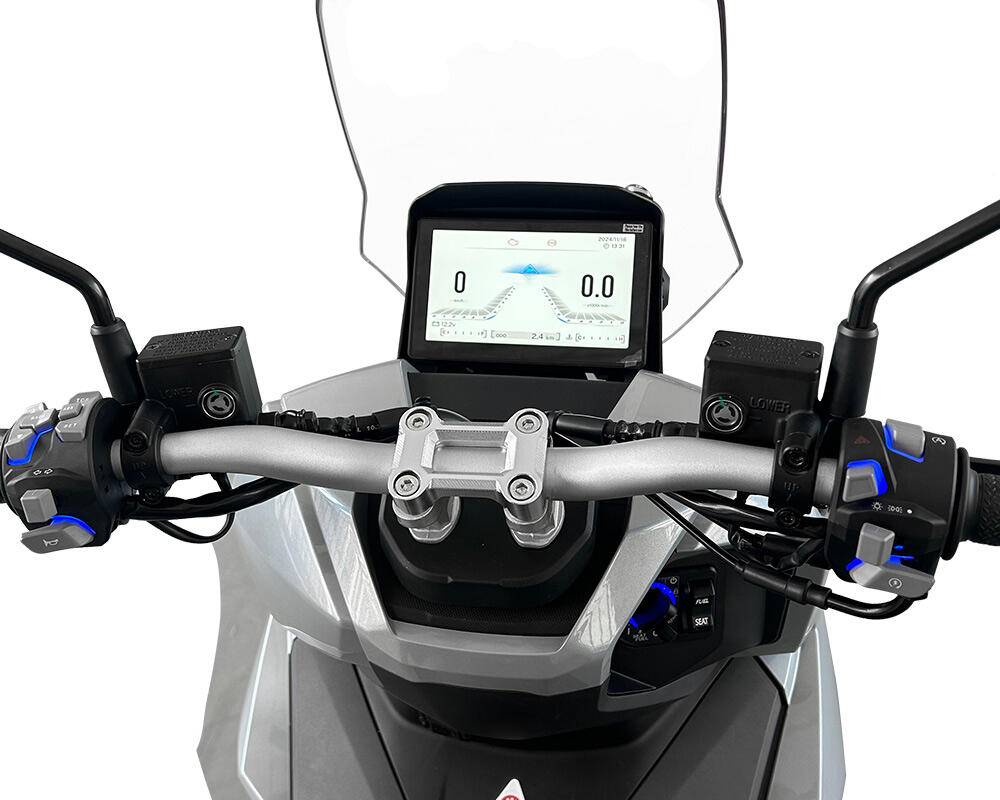

	Night lights and LCD instrument panel Handlebar switches with night lights and LCD instrument panel, stylish design and easy to control!

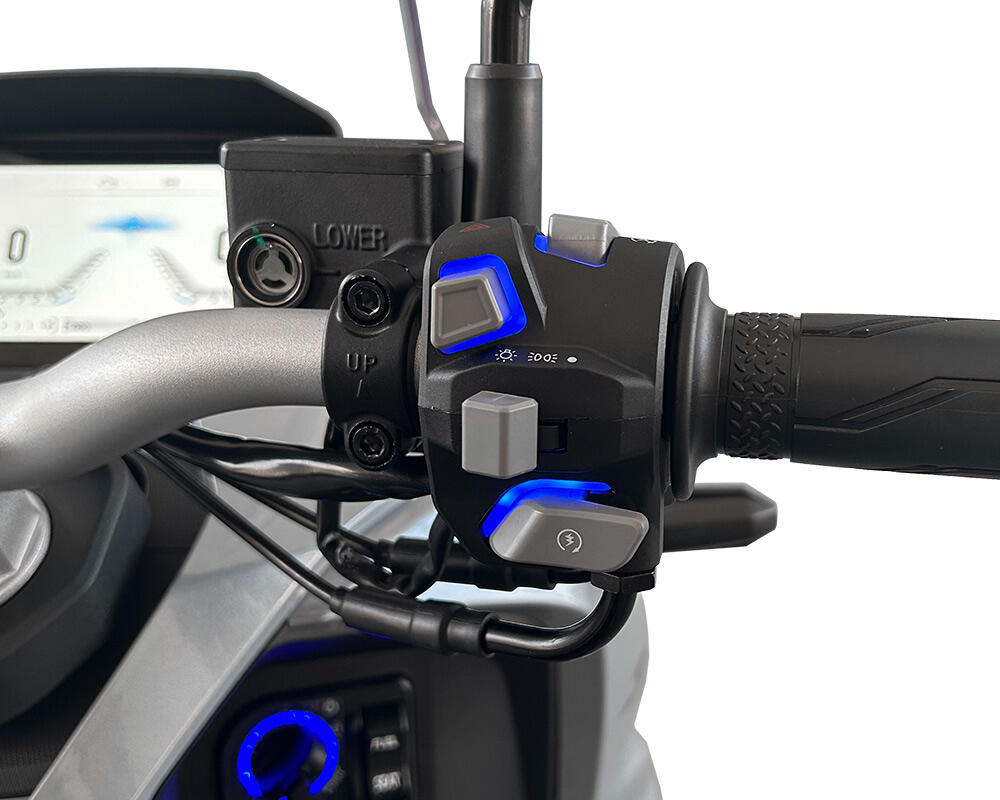

	Keyless start and AISS silent automatic start-stop system: Keyless start and AISS silent automatic start-stop system. The engine shuts down automatically after 3 seconds of idling, and you can start off simply by twisting the throttle lightly. Enjoy superior control and a pleasant riding experience!

ITEM	SPECIFICATION
Overall dimensions (mm)	1935×762×1270mm
Wheelbase	1323mm
Seat Height	780mm
Fuel Tank Capacity	11.6L
Front \ Rear Tires (inch)	110/80-14 \ 130/70-13
Front Shock Absorber	Sleeve hydraulic compound absorber
Rear Shock Absorber	Hydraulic composite absorber
Brake Mode	Front: disc brake / Rear: disc brake
Front/Rear Rim (inch)	Aluminum wheel: 2.5×14 / 3.50×13
Top Speed	95km/h
Engine Model	Single cylinder / Four-stroke / 4 vavles / Water cooling
Bore × Stroke	63×57.9mm
Swept Volume	180ml
Ignition Form	DC.D.I
Max Power	12.8Kw/8250r/min
Max Torque	15.7N.m/6500r/min
Net Weight	134kg
Max Load	150kg
Fuel Consumption	1L/35km
Fuel type	92# gasoline

Multi - valve integral cylinder head technology : The four - valve improves the formation of mixture , reduces the emission of CO and HC , improves the charging efficiency and increases the combustion speed , thereby increasing the engine speed and increasing the engine output power .
	The integral cylinder head improves the stiffness of CAM support , while the assembly accuracy is improved and the abnormal noise is reduced .
Adopt side hanging cooling integration technology : The water pump is arranged at the cylinder head , with compact structure and convenient installation . The radiator is arranged at the right crankcase of the engine , the waterway is the shortest , the cycle is the fastest , and the cooling efficiency is the highest .
	Application of crankshaft offset technology : The axis of the engine cylinder hole is moved down relative to the axis of the crankshaft to reduce the maximum side pressure of the piston , so as to maximize the use of energy generated by gasoline combustion , improve fuel utilization and improve fuel consumption .
Integrated dual oil filtration technology : secondary oil filtration system , and the oil is filtered through the double filtration equipment , which has a better filtering effect , greatly reducing internal wear , and making the engine more durable .
